Industrial Globe Valves — Manufacturer, Supplier & Stockist
Globe valves are linear-motion valves used for both flow regulation and tight shut-off. Navjivan Valves supplies forged steel, bellow-sealed and pressure-sealed globe valves for throttling and isolation duty in steam, water, oil and process piping systems.
Product Overview
Unlike gate valves, globe valves are well suited to throttling because flow passes through a seat in a plane roughly perpendicular to the pipe axis, giving predictable control across the disc's travel. The S-shaped flow path introduces a higher pressure drop than a gate valve, but it makes globe valves the preferred choice wherever flow needs to be regulated, not just switched on or off.
Types of Globe Valves
Forged Steel Globe Valves
Constructed from forged steel such as ASTM A105, A182 F11/F22, or stainless A182 F316, offering excellent strength and corrosion resistance for high-pressure, high-temperature applications.

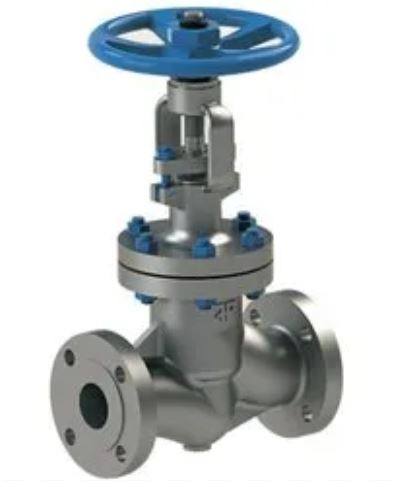

Bellow-Sealed Globe Valves
Use a welded metallic bellows to seal the stem, preventing fugitive emissions in hazardous or toxic service — common in refinery and chemical plant applications.

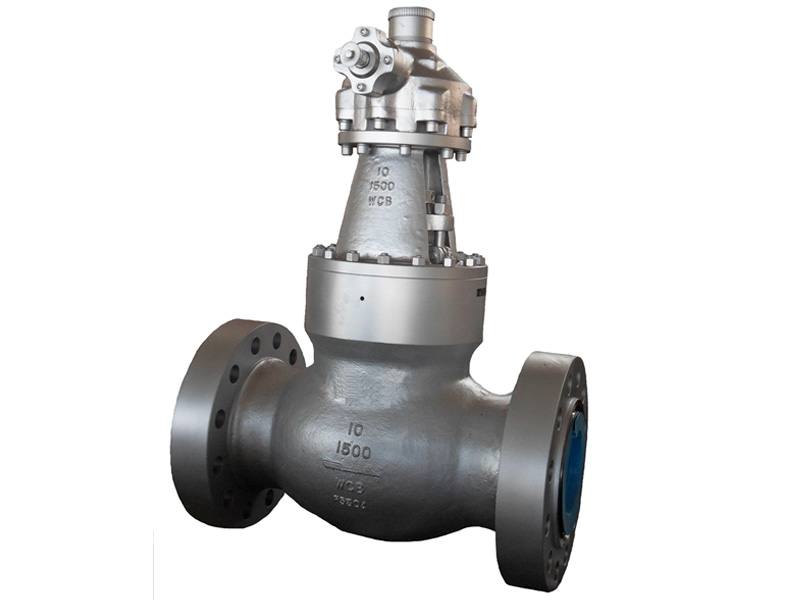

Pressure-Sealed Globe Valves
The bonnet is sealed by internal pressure rather than bolted joints alone, becoming tighter as pressure increases — used in high-pressure steam and power plant service.

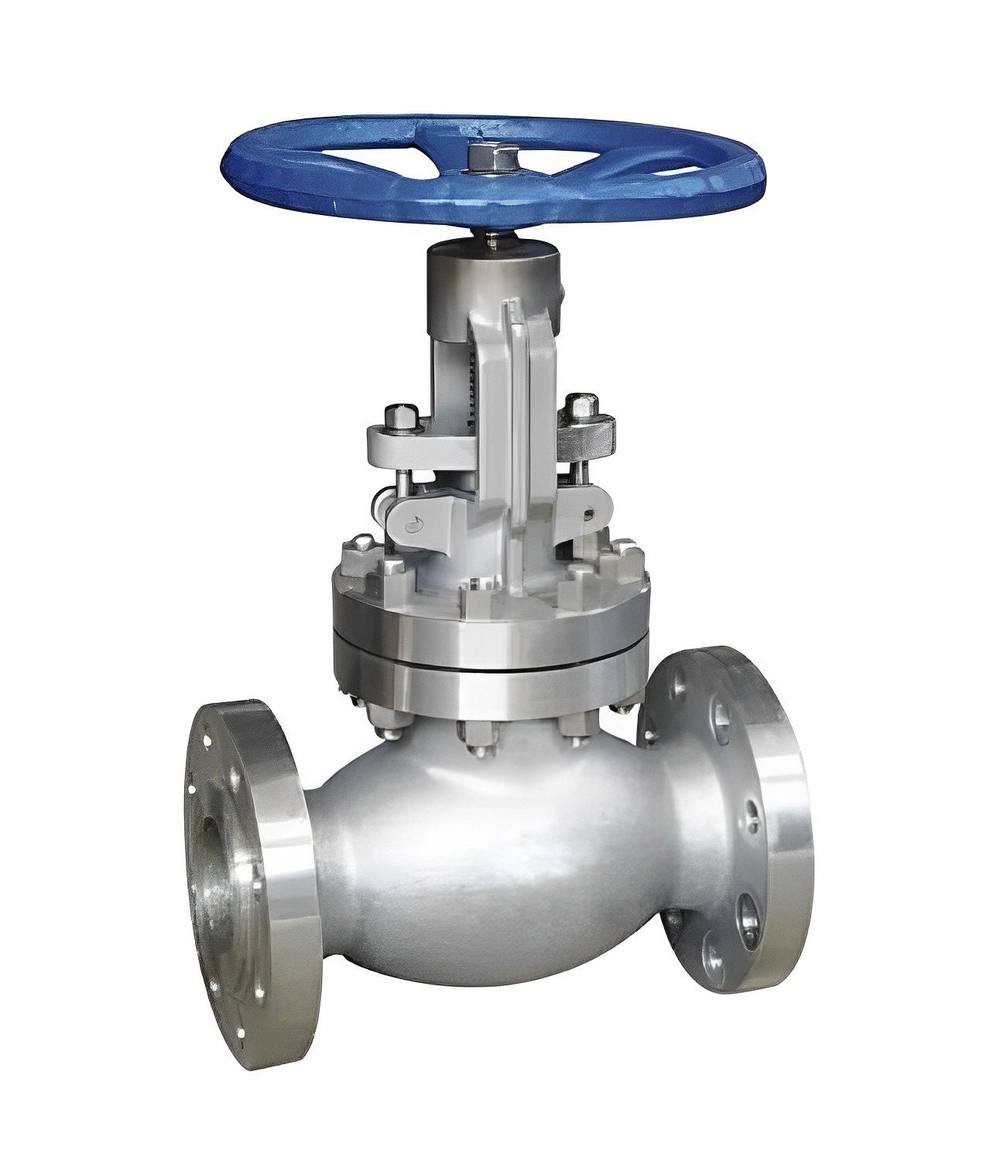

Bolted Bonnet Globe Valves
A conventional bolted-bonnet design offering easy maintenance access for general industrial throttling and isolation duty.
Specifications
| Testing Standard | BS 5146 |
|---|---|
| Size Range | 2" – 16" (DN50 – DN400) |
| Pressure Class | 150 – 2500 |
| Body Material | WCB, WCC, WC6, WC9, C5, C12, LCB, LCC, CF8, CF8M |
| Seat | A105 + 13% Cr, A105 + Stellited |
| Trim | API Trim No. 1 to 16 |
| Face to Face | As per ASME B16.10 |
| End Connection | ANSI B16.5 (Raised Face Flanged), ANSI B16.25 (Butt Weld) |
| Operation | Manual, Gear Operated |
Specifications reflect the products currently supplied by Navjivan Valves. Exact availability may vary by size and material — please confirm with our team for your specific requirement.
Applications
- Steam Systems
- Power Generation
- Oil & Gas Processing
- Chemical Plants
- Water Treatment
- Refineries
Materials of Construction
Globe valves are available in WCB, WCC, WC6, WC9, C5, C12, LCB, LCC, CF8 and CF8M, with A105 + 13% Cr or A105 + Stellited seats, matched to the fluid, pressure and temperature of the application.
Key Features
- Precise, repeatable flow throttling as well as dependable shut-off
- S-shaped body path suited to regulating duty across the disc's travel
- Bellow-sealed and pressure-sealed designs for hazardous or high-pressure steam service
- Forged steel construction for demanding temperature and pressure conditions
- Compatible with manual or gear-operated actuation
